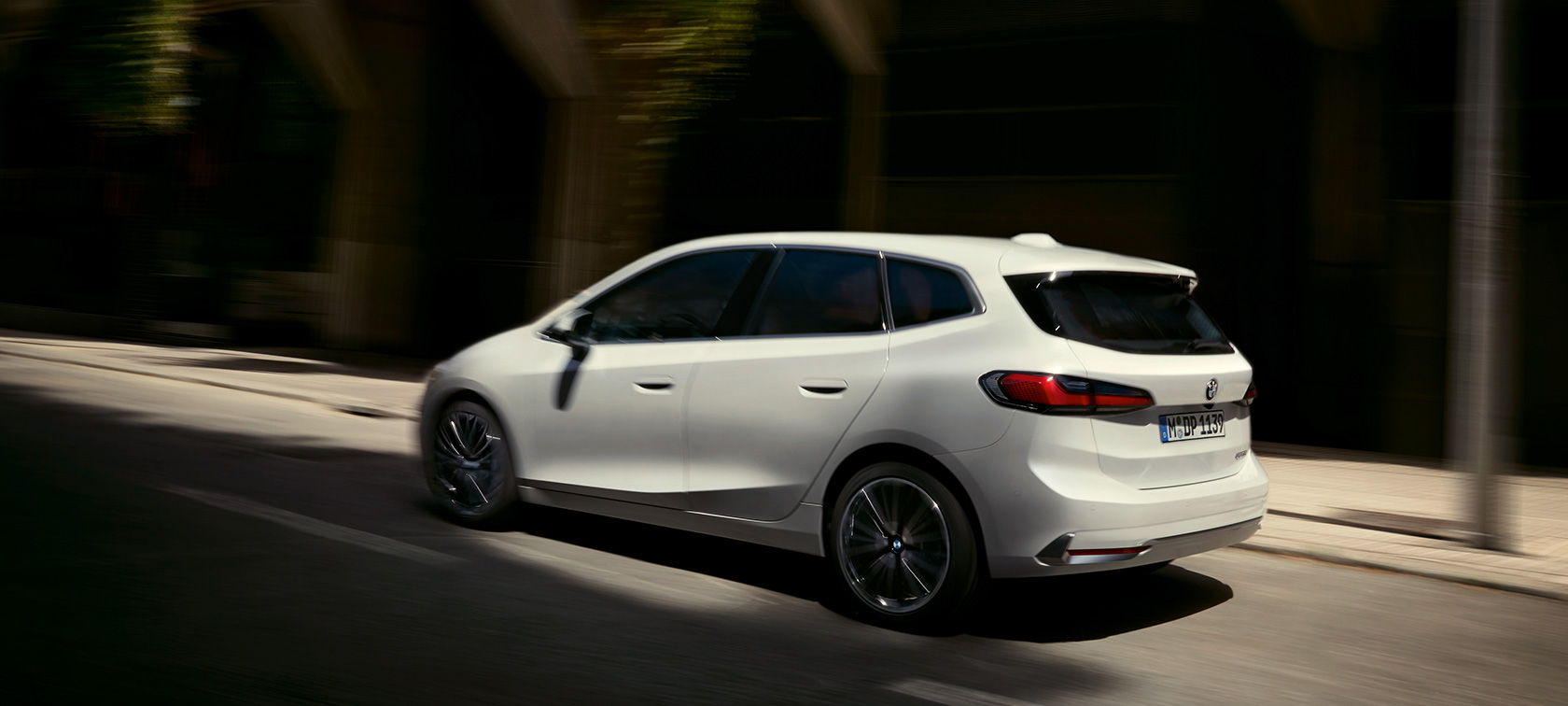

BMW 2 Series Active Tourer U06 2021 Mineral White metallic three-quarter rear view driving

THE 2

THE BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA.

THE 2THE BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA.

The key facts and figures on the new BMW 2 Series Active Tourer at a glance: engines, fuel and power consumption, CO2 emissions, electric range and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.

Read more

TECHNICAL DATA OF THE BMW 2 SERIES ACTIVE TOURER.

Select model

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW (hp) 90 (122)
Torque in Nm 230
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 90 (122)/3900-6500
Nominal torque in Nm/1/min 230/1500-3600

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 10.3
Maximum speed in km/h 206
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 6.7-6.2
CO2 emissions, combined WLTP in g/km [5] 152-140
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4386/1824/1576
Wheelbase in mm 2670
Curb weight in kg [8] 1545
Luggage capacity in l 470-1455
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1100/75

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 230
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 100 (136)/4400-6500
Nominal torque in Nm/1/min 230/1500-4000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 9.0
Maximum speed in km/h 214
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 6.7-6.2
CO2 emissions, combined WLTP in g/km [5] 152-140
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4386/1824/1576
Wheelbase in mm 2670
Curb weight in kg [8] 1545
Luggage capacity in l 470-1455
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1][2]

Powertrain type Petrol - mild hybrid
Power in kW (hp) 125 (170) [9]
Torque in Nm 280 [9]
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 115 (156)/4700-6500
Nominal torque in Nm/1/min 240/1500-4400

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 14 (19)/10.5 (14)
(Nominal) torque in Nm 55

Performance

Acceleration 0–100 km/h in s 8.1
Maximum speed in km/h 221
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 6.4-5.8
CO2 emissions, combined WLTP in g/km [5] 144-131
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.9
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4386/1824/1576
Wheelbase in mm 2670
Curb weight in kg [8] 1595
Luggage capacity in l 415-1405
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1][2]

Powertrain type Petrol - mild hybrid
Power in kW (hp) 160 (218) [9]
Torque in Nm 360 [9]
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1998
Nominal power in kW (hp)/1/min 150 (204)/5000-6500
Nominal torque in Nm/1/min 320/1500-4000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 14 (19)/10.5 (14)
(Nominal) torque in Nm 55

Performance

Acceleration 0–100 km/h in s 7.0
Maximum speed in km/h 241
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 6.5-5.9
CO2 emissions, combined WLTP in g/km [5] 146-134
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.9
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4386/1824/1576
Wheelbase in mm 2670
Curb weight in kg [8] 1620
Luggage capacity in l 415-1405
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1500/75

Total Powertrain [1][2]

Powertrain type Diesel
Power in kW (hp) 110 (150)
Torque in Nm 360
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 110 (150)/3750-4000
Nominal torque in Nm/1/min 360/1500-2500

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 8.8
Maximum speed in km/h 220
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 5.2-4.8
CO2 emissions, combined WLTP in g/km [5] 137-125
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4386/1824/1576
Wheelbase in mm 2670
Curb weight in kg [8] 1620
Luggage capacity in l 470-1455
Fuel capacity in l 45
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1400/75
Including of /content/bmw/marketB4R1/master/en_BQ/publicPools/teaser-pool/medium-teasers/tyre-energy-lables/jcr:content/par-4col/wideteaser_67 failed

Fuel consumption, power consumption and CO2 emissions of the BMW 2 Series Active Tourer.

BMW 223i Active Tourer*:
Fuel consumption in l/100 km (combined): x.x–x.x
CO2 emissions in g/km (combined): xxx–xxx

BMW 230e xDrive Active Tourer*:
Fuel consumption in l/100 km (combined): x.x–x.x
CO2 emissions in g/km (combined): xxx–xxx
Power consumption combined in kWh/100 km:

* The figures are preliminary.

BMW 225e xDrive and BMW 230e xDrive Active Tourer are expected to be available from 7/2022.

At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

Official data on fuel consumption, CO2 emissions, power consumption and electric range were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment.  For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp

For more information on the official fuel consumption and official specific CO2 emissions of new passenger cars, see the ‘Guide to Fuel Consumption, CO2 Emissions, and Electricity Consumption of New Passenger Cars’, which is available free of charge at all sales outlets, from Deutsche AutomobilTreuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern- Scharnhausen, and at www.dat.de/co2

Read more

Fuel consumption, power consumption and CO2 emissions of the BMW 2 Series Active Tourer.

  • BMW 223i Active Tourer:
    Fuel consumption in l/100 km (combined): –
    CO2 emissions in g/km (combined): –

    * The figures are preliminary.

    The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

    [1]Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

    [2]For plug-in hybrid: Electric drive depending on battery charging level.

    [3]For plug-in hybrid: At temperatures below freezing, the fully electric drive system is only available after a few kilometres of driving, once the battery has heated to operational temperature.

    [4]Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists.In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195.

    For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

    Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/.

    [5]For plug-in hybrid: Weighted, combined (EC AC Charge Weighted)

    [6]Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

    [7]The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

    [8]The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

    [9]Composed of combustion engine drive (specified nominal value) and electric drive (up to specified nominal value).

    [10]Composed of combustion engine drive (specified nominal value) and electric drive (up to specified nominal value). Electric drive depending on battery charging level.
